VAG Comp. Intercooler Kit VW Polo AW GTI 2,0TSI - Audi A1 40TFSI Wagner WAG-ICS-VWG-004 - сервиз

Парт номер:

WAG-ICS-VWG-004

Производител:

Информация:

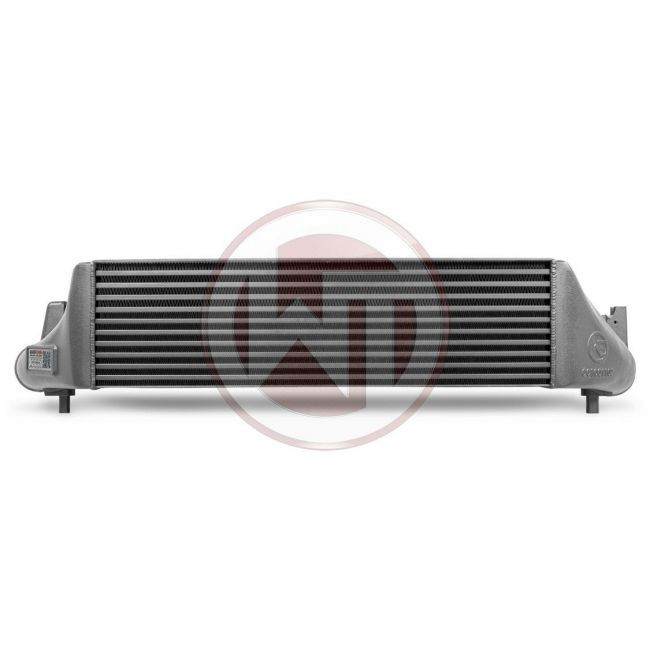

The WAGNERTUNING high-performance intercooler has got a new competition core (Tube Fin) with the dimensions 600 mm x 167 [101] mm x 125 [90] mm [stepped] / 23,6 Inch x 6,6 [4] Inch x 4,9 [3,5] Inch [stepped], which was developed especially for the requirements of the VW Polo GTI. This high-performance core offers an 24 % larger frontal surface and 73 % more core volume compared to the stock intercooler. The aluminum cast endtanks were designed in CAD and optimized in CFD simulations (for an ideal internal airflow). The result is a excellent cooling property with a minimal back pressure. The newly developed competition high-performance core is very light and provides the adjoining components (for example the watercooler) enough air flow. That`s why this kit is perfect for racing use. An optimal cooling effect of the charged air with a significant increase in performance! An anti-corrosion powder coating with perfect heat-conducting properties protects the WAGNERTUNING intercooler from all environmental influences, so a lasting and optimal cooling effect can be guaranteed. The installation is done by replacing the original intercooler and is easy to perform (plug and play). All our products are subject to a continuous quality monitoring. Inlet diameter: Ø60 mm/2,36 Inch ; Outlet diameter Ø60 mm/2,36 Inch Dimensions stock intercooler: 700 mm x 115 mm x 80 mm / 27,5 Inch x 4,5 Inch x 3,15 Inch V = 6,44 L / 393 Inch³ A = 805 cm²/ 124,7 Inch² Dimensions WAGNERTUNING intercooler: 600 mm x 167 [101] mm x 125 [90] mm [stepped] / 23,6 Inch x 6,6 [4] Inch x 4,9 [3,5] Inch [stepped] V = 11,14 L / 680 Inch³ A = 1002 cm²/ 155 Inch²

Приложим за:

VW Polo AW GTI 2,0TSI (147KW/200PS) from 2018 Audi A1 GB 40TFSI (147KW/200PS) from 2018

Комплекта включва:

1 intercooler 2 silicone hoses (black) 1 mounting material 1 installation instruction
