Wideband O2 lambda sensor LSU 42 UEGO Bosch with socket AEM AEM Performance Electronic 30-2002 - сервиз

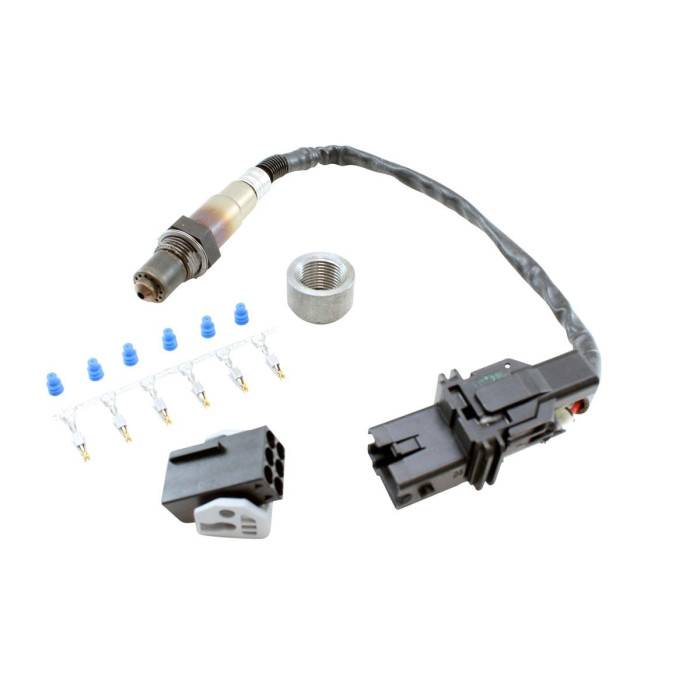

Lambda sensor with Bosch 4.2 LSU wideband UEGO O2 sensor in set with socket Scope of delivery: Complete kit with probesteel threaded weld-in socket and socket. The LSU broadband lambda probe is a planar, two-cell ZrO2 limit current probe with integrated heater. It is suitable for measuring the oxygen content and λ value of exhaust gases in vehicle engines. Thanks to its continuous characteristic curve in the range from λ = 0.65 to air, it can be used universally for λ = 1 as well as for other λ ranges. Installation in flue gas pipes at a point with a representative flue gas composition, in compliance with the prescribed temperature limits. The probe ceramic heats up quickly after the probe heater is switched on. After the ceramic has heated up, the occurrence of condensation, which could damage the hot probe ceramic, must be ruled out.The installation angle should be as vertical as possible, but at least 10° from the horizontal. This prevents liquid from collecting between the probe housing and the sensor element. An inclination of 90 ° to the exhaust gas flow should be aimed for, but not more than 90 ° + 15 ° gas inlet opening against the exhaust gas flow) or 90 ° - 30 °. Other angular positions may have to be assessed separately.Tightening torque: 40 - 60 Nm
