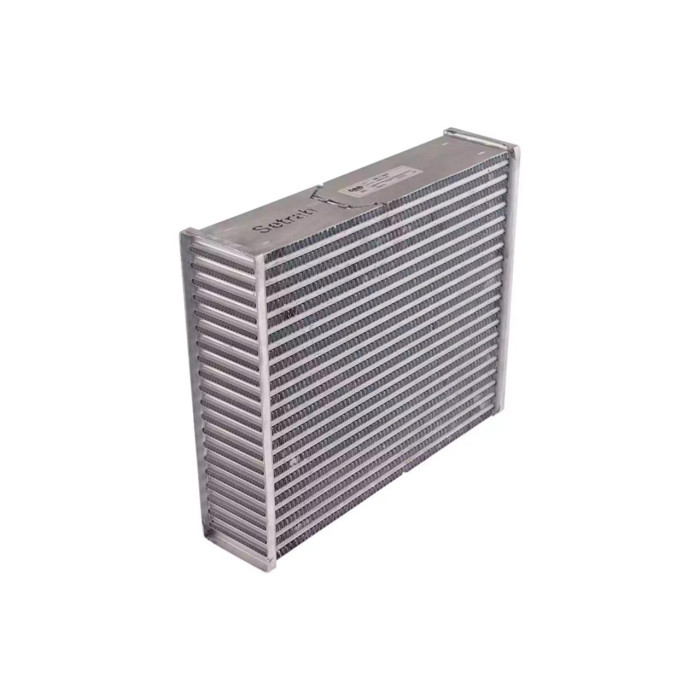

ProLine IC 316IC-20 Intercooler Core - 58-11827 Setrab 58-11827 - сервиз

L 316mm x H 276mm x T 70mm Extremely low weight, only 2.4 KG Maximum heat dissipation with low pressure loss 100% tested for leakage Extremely resistant to corrosion Superior finishing quality Technical Specifications Working Pressure 0-2.5 bar(g) dynamic Pressure Pulsation Endurance 100k pulsations, 0-3 bar(g), 0.5-1 Hz, 200 °C air temp Max Pressure 4 bar(g) Burst Pressure 6 bar(g) Leak Test 1.5 bar(g) (Core) Working Temperature -40 °C to 220 °C Corrosion Endurance 20 Days SWAAT G85-94 A3 960h ISO 9227 NSS Inner Cleanliness ISO 16232:10, CCC=V(B-K21/C-K18/F-K12/I-K3/J-K00), <10 mg impurities total General Dimensional Tolerances ISO 2768-v Material Aluminium alloys
