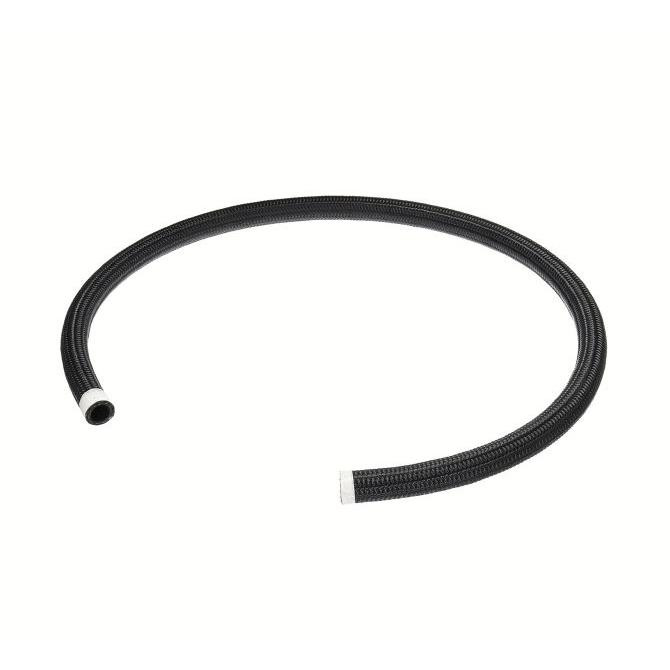

Nylon steel braided hose line Dash/AN BAR-TEK® BAR-TEK Motorsport 2100337.1 - сервиз

Multi-layer high-performance nylon steel hose Dash for your project. Discreet but high-quality look for almost any application! The hose consists of a synthetic rubber layer, a steel layer and an outer nylon protective layer. This combination makes the hoses significantly more flexible than pure steel braided hoses. The hose can be used e. g. for petrol systems and oil. Temperature range: approx. -40°C to 150°C Suitable for Dash 6, 8 or 10 Colour: Black (Price per running metre. If you need more than one metre, simply select the appropriate quantity. It is always delivered in one piece) What dimensions do Dash connections have? The following table shows the thread dimensions and the corresponding internal hose diameters. Small tolerances are possible for the hoses. For oil supply lines we recommend -4 AN with 6mm hose and for return lines at least -10AN with 16mm hose inner diameter. For catchtank systems we recommend Dash 10 Dash (AN) 2 3 4 5 6 8 10 12 16 20 24 28 32 Thread (inch) 5/16x24 3/8x24 7/16x20 1/2x20 9/16x18 3/4x16 7/8x14 1-1/16x12 1-5/16 1-5/8x12 1-7/8x12 2-1/4x12 2-1/2x12 External thread inch/mm 0.3125 / 7.94 0.3750 / 9.50 0.4375 / 11.11 0.5000 / 12.70 0.5625 / 14.29 0.7500 / 19,05 0.8750 / 22.22 1.0625 / 26.99 1.3125 / 33.34 1.3125 / 33.34 1.8750 / 47.63 2.5000 / 63.50 2.5000 / 63.50 Internal thread inch/mm 0.2614 / 6.64 0.3299 / 8.38 0.3762 / 9.56 0.4387 / 11.14 0.4943 / 12.56 0.6733 / 17,10 0.7874 / 20.00 0.9603 / 24.39 1.2103 / 30.74 1.2103 / 30.74 1.7728 / 45.03 2.1489 / 54.58 2.3978 / 60.90 Inner tube 3.2mm 4.8mm 6.4mm 7.9mm 9.5mm 12.7mm 15.9mm 19.1mm 25.4mm 31.8mm 38.1mm 44.5mm 50.8mm
