Garrett Vent BOV 50mm GVB-50A Red Garrett 914956-0001 - сервиз

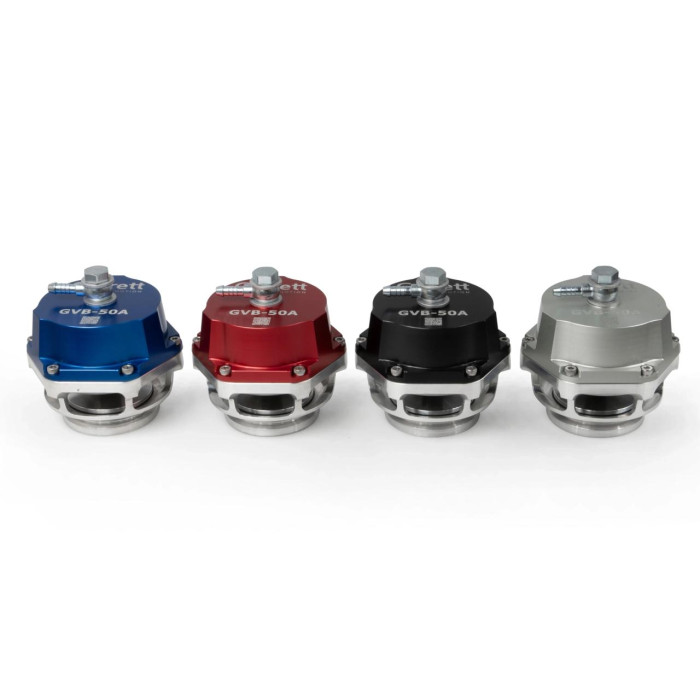

GARRETT VENT | BLOW-OFF Valves with high flow for high performance engines Garrett Vent | Blow-Off Valves were developed by the same engineers who designed the G-Series turbochargers and GVW wastegates. GVB-50 is a high flow BOV with a 50mm valve available in four eye-catching colour combinations. You have the choice between a BOV with venting to atmosphere (VTA) and one with recirculation (RCV). Features: CFD-tested for maximum flow and thermal efficiency Replaceable components to extend service life Robust construction for easy membrane replacement 6061 anodised aluminium BOV cover and fully machined billet housing Maximum flow 350 CFM | .21kg/s for GVB-50R Four outlet adapters for the return valve are available separately Base pressure 0.7 Bar | 10 PSI (blue and white spring installed) Configurable spring settings: 0.2 Bar | 3 PSI - 0.9 Bar | 13 PSI Welded aluminium alloy flange Garrett BOV contains five springs that allow fine tuning of the pressure setting Springs: 17/7 PH stainless steel Coated stem and bushing for reduced friction and wear resistance High temperature resistant elastomer diaphragm reinforced with Nomex Fittings and fastening elements made of stainless steel BOV flange dimensions as for TIAL Q or QR valves   GVB-50 Blow Off Valves include all of the following parts: Air connection parts (nuts, bolts, washers) V-band set (V-band, screw, nut) O-ring (inlet flange) Welding flange Springs (replacement: red, green, brown | installed: blue, white)
