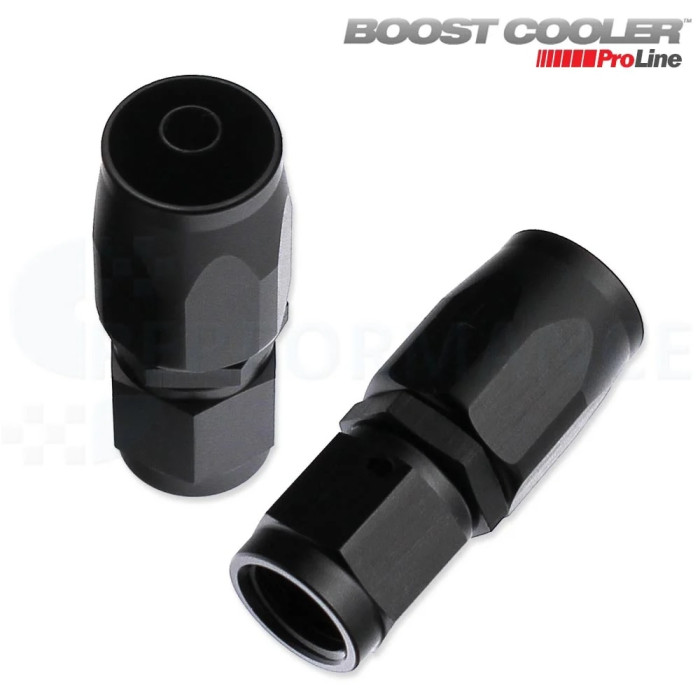

Dash 4 Steel Braided Line Aluminum fitting straight Snow Performance SP999PRO - сервиз

Парт номер:

SP999PRO

Производител:

Информация:

Dash 4 steel braided line connection UNF thread and 360 ° rotation compensation. Manufacture the steel braided line yourself.

Допълнителна информация:

Reusable Dash 4 connection made of aluminum with UNF thread and 360 ° rotating compensation. - ProLine series. With the Dash 4 aluminum fitting, it is possible to manufacture steel braided lines yourself according to individual needs and to install them free of tension. No additional seals are required. The technical design of the fitting is optimized for maximum flow and reduces turbulence and pressure losses in your Boost Cooler Water-Methanol Injection System. Product Features: Dash 4 Fitting, reusable, with 7 / 16-20UNF Thread Suitable for Boost Cooler ProLine Steel Braided Line Allows a subsequent Upgrade of existing Boost Cooler Systems to ProLine Material: aluminum 6061-T6, hard anodized CNC machined for minimal tolerances and trouble-free operation Black anodized finish for durability and strength 100% methanol-resistant Assembly Instructions Wrap the steel flex cable at the interface with adhesive tape and cut to size with a fine saw. Unscrew the press nut from the fitting and push it onto the hose. Push the sealing olive onto the PTFE core up to the inner collar. The steel flex jacket must now be over the sealing olive. Screw the fitting into the PTFE tube as far as it will go and screw the press nut to the fitting by hand. Clamp the press nut in a vice and tighten it Perform a pressure test.
