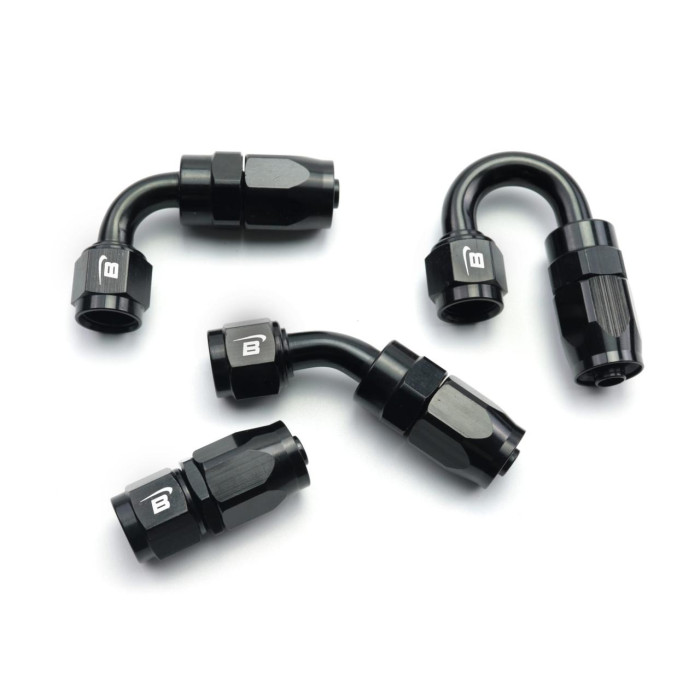

Aluminium connection- fitting Dash/AN BAR-TEK® BAR-TEK Motorsport 2100335 - сервиз

Aluminium connection, universal for use e.g. with our high-performance line for building catchtank systems and much more. Fitting available in Dash 6 / 8 / 10 Black anodised aluminium Our fittings are labelled with the size, so you will never have to search for the right size again The aluminium fitting can be reused indefinitely. What dimensions do Dash connections have? The following table shows the thread dimensions and the corresponding internal hose diameters. Small tolerances are possible for the hoses. For oil supply lines we recommend -4 AN with 6mm hose and for return lines at least -10AN with 16mm hose inner diameter. For catchtank systems we recommend Dash 10 Dash (AN) 2 3 4 5 6 8 10 12 16 20 24 28 32 Thread (inch) 5/16x24 3/8x24 7/16x20 1/2x20 9/16x18 3/4x16 7/8x14 1-1/16x12 1-5/16 1-5/8x12 1-7/8x12 2-1/4x12 2-1/2x12 External thread inch/mm 0.3125 / 7.94 0.3750 / 9.50 0.4375 / 11.11 0.5000 / 12.70 0.5625 / 14.29 0.7500 / 19,05 0.8750 / 22.22 1.0625 / 26.99 1.3125 / 33.34 1.3125 / 33.34 1.8750 / 47.63 2.5000 / 63.50 2.5000 / 63.50 Internal thread inch/mm 0.2614 / 6.64 0.3299 / 8.38 0.3762 / 9.56 0.4387 / 11.14 0.4943 / 12.56 0.6733 / 17,10 0.7874 / 20.00 0.9603 / 24.39 1.2103 / 30.74 1.2103 / 30.74 1.7728 / 45.03 2.1489 / 54.58 2.3978 / 60.90 Inner tube 3.2mm 4.8mm 6.4mm 7.9mm 9.5mm 12.7mm 15.9mm 19.1mm 25.4mm 31.8mm 38.1mm 44.5mm 50.8mm
