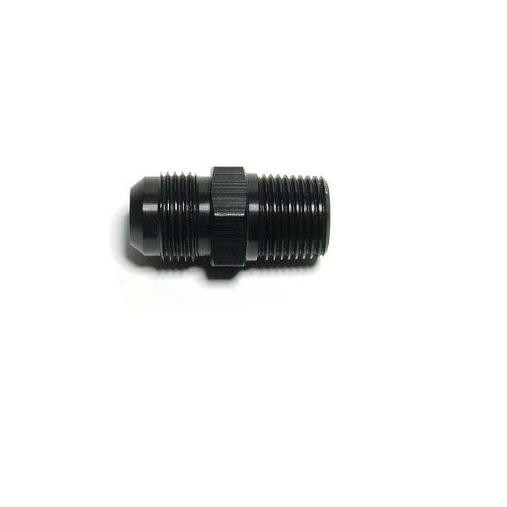

Aluminium connection adapter NPT to Dash 10 BAR-TEK® BAR-TEK Motorsport 2100336 - сервиз

Aluminium adapter, universal for use e.g. with our Catch tank and much more. 1/2\" NPT to Dash 10 / AN10 Black anodised aluminium The aluminium screw connection can be reused indefinitely. (Image shows catchtank as an installation and assembly example) What are the dimensions of Dash connections? The following table shows the thread dimensions and the corresponding internal hose diameters. Small tolerances are possible for the hoses. For oil supply lines we recommend -4 AN with 6mm hose and for return lines at least -10AN with 16mm hose inner diameter. For catchtank systems we recommend Dash 10 Dash (AN) 2 3 4 5 6 8 10 12 16 20 24 28 32 Thread (inch) 5/16x24 3/8x24 7/16x20 1/2x20 9/16x18 3/4x16 7/8x14 1-1/16x12 1-5/16 1-5/8x12 1-7/8x12 2-1/4x12 2-1/2x12 External thread inch/mm 0.3125 / 7.94 0.3750 / 9.50 0.4375 / 11.11 0.5000 / 12.70 0.5625 / 14.29 0.7500 / 19,05 0.8750 / 22.22 1.0625 / 26.99 1.3125 / 33.34 1.3125 / 33.34 1.8750 / 47.63 2.5000 / 63.50 2.5000 / 63.50 Internal thread inch/mm 0.2614 / 6.64 0.3299 / 8.38 0.3762 / 9.56 0.4387 / 11.14 0.4943 / 12.56 0.6733 / 17,10 0.7874 / 20.00 0.9603 / 24.39 1.2103 / 30.74 1.2103 / 30.74 1.7728 / 45.03 2.1489 / 54.58 2.3978 / 60.90 Inner tube 3.2mm 4.8mm 6.4mm 7.9mm 9.5mm 12.7mm 15.9mm 19.1mm 25.4mm 31.8mm 38.1mm 44.5mm 50.8mm
