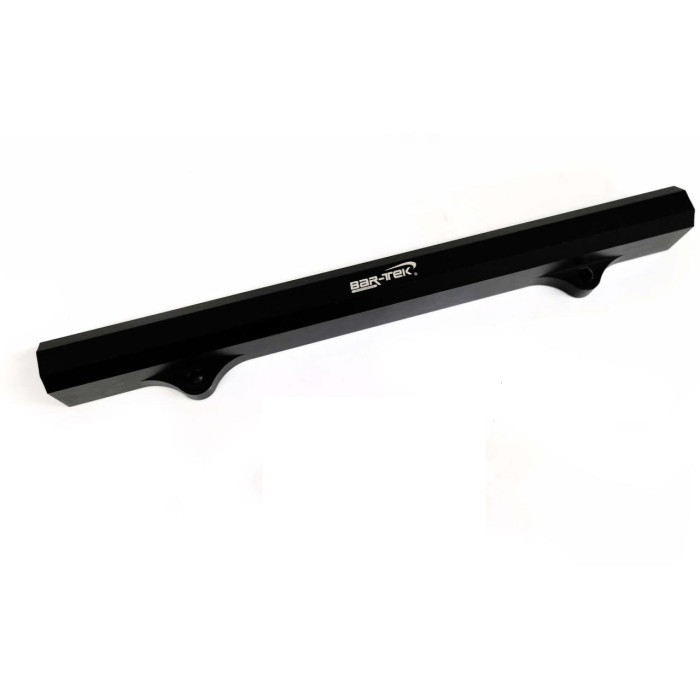

1.8T RACE fuel rail Dash 8 BAR-TEK® BAR-TEK Motorsport 2118t215 - сервиз

BAR-TEK® High-flow aluminium for all -20V engines. Fuel rail 1.8T We recommend this 1.8T fuel rail especially for heavily tuned 1.8T engines, as the fuel rail has a much larger diameter compared to the standard rail. Both ends have Dash 8 threads so that fuel can be fed in from both sides. This means that all cylinders receive fuel evenly. This bar is indispensable, especially when using E85 fuel, as the fuel mixture has to be extremely lubricated with E85. Different spacer sleeves must be used depending on the design of the injectors to be used. The distance between the injection nozzle bores from centre to centre is approx. 89 mm. red connection Dash 8 to hose connection (inlet) Adapter with Aeromotive rotary equaliser black billet holder for petrol pressure regulator red adapter Dash 6 to hose connection for return line You can also get the 1.8T RACE fuel rail with connection kit as a set. (petrol pressure regulator sold separately)The fuel rail is not suitable for longitudinally mounted AEB engines !!!You can find more information and pictures on our page about the Project VW Golf 1.8T 20V.
