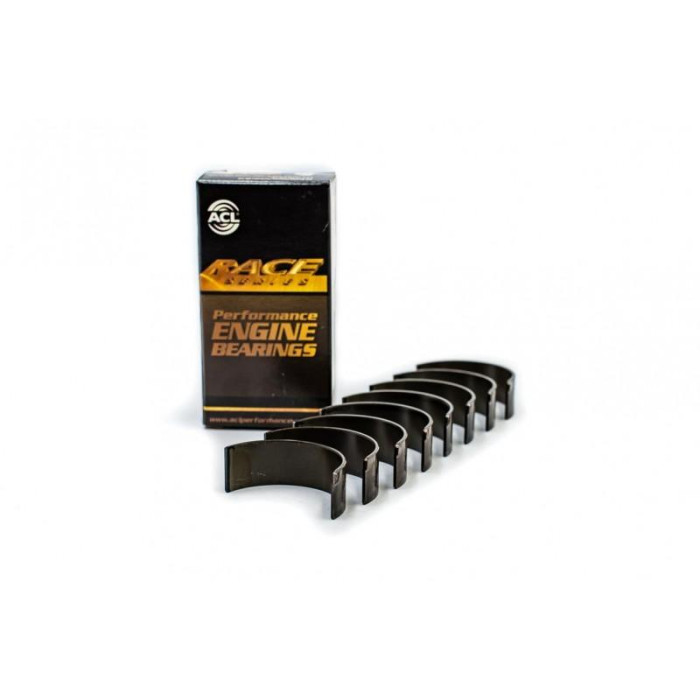

Fiat, Lancia Delta Integrale 2.0 HF Race Series connecting rod bearings ACL 4B2904H-0.25 - сервиз

Парт номер:

4B2904H-0.25

Производител:

Информация:

ENGINE BEARINGS CON ROD BEARING SET MAIN BEARING SET Part# Part# 4B2904H 4B2904HX   5M2908H   5M2908HX   Sizes STD, .025, .25 STD STD, .025, .25 STD Oil Clearance Standard + 0.001" Extra Standard + 0.001" Extra Half Type Identical Halves Upper & Lower Material Tri-metal Hardened steel backs Tri-Metal Min Std Shaft Size 1.9995in / 50.787 mm 2.0862 in / 52.991 mm Max Std Shaft Size 2.0003in / 50.807 mm 2.0866 in / 53.000 mm Min Std Tunnel Size 2.1219 in / 53.897 mm 2.2330 in / 56.717 mm Max Std Tunnel Size 2.1226 in / 53.913 mm 2.2337 in / 56.735 mm Max Wall at Crown 0.0605in / 1.536 mm 0.0600in / 1.523 mm 0.0726 in / 1.843 mm 0.0720 in / 1.830 mm Max Overall Length 0.768 in / 19.50 mm 0.817 in / 20.75 mm (2908H/HX) 0.955 in / 24.25 mm (2909H/HX) Notes - - Diagram        (Top View)  2908H & HX - Positions 1,2,4,5 2909H & HX - Position 3  THRUSTWASHER SET Part# Material Sizes Notes -
