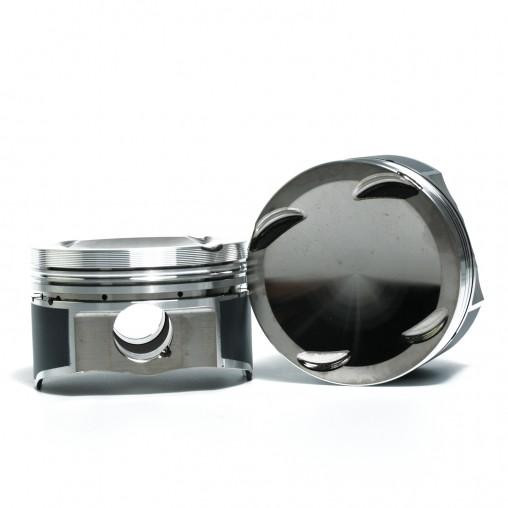

Audi 2.5L TFSI TT-RS, RS3 (9.0:1) 1400HD Forged Pistons by Wiseco ZRP 23705-825-5 - сервиз

Парт номер:

23705-825-5

Производител:

Brand

Audi

Material

2618 Low-Silicon / High-Expansion alloy

Length

144.00

Stroke

92.80

Application

TT-RS , RS3 , Q2 RS

Comp. Ratio

9.0:1

Dome

-11.20

Set Of

5

Pin Size

21.00mm (Upgraded 9310 alloy / 5.34mm Wall Thck.)

Dimensions

82.50mm / CR 9.0:1

Block Height

220.00

Ring Set

21-GNH8250

Gasket Thickness

0.90mm x 83.0mm

Pin P/N

S721

Engine

2.5L TFSI (EA855)

Note

These pistons are designed to be used in all Generations of 2.5L TFSI engine configurations with 21.00mm pin. Con-Rod part number w/21.0mm pin R-AUD-009-I-5
