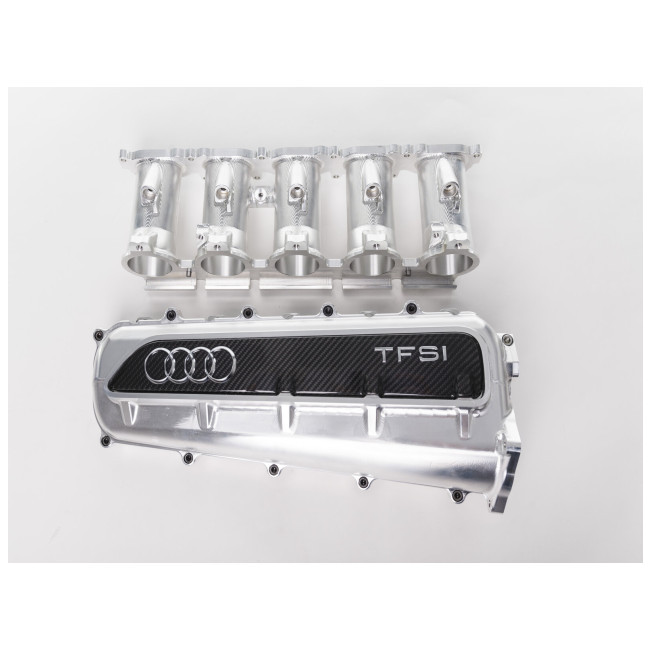

2.5 TFSI EA855 Billet intake manifold Audi TTRS RS3 CEPA CZG DAZA DNWA Billet Motorsport 40-BM-4054 - сервиз

Парт номер:

40-BM-4054

Производител:

Информация:

2.5 TFSI EA855 Billet Motorsport intake manifold for the 5 cylinder Audi TTRS RS3 RSQ3 CEPA CZG DAZA DNWA Made in Germany Billet milled motorsport intake manifold without split intake manifold technology for a maximum degree of filling. The original split intake manifold was developed by Audi so that the engine with the original components such as turbocharger, intake and intercooler fulfills a perfect filling and efficiency. The original split intake manifold design has been replaced by a high-flow volume principle in which all five intake funnels sit in the airflow and ensure that all cylinders are filled evenly. The gap in the original intake manifold acts as a restrictor above a certain power level. Upgrade turbochargers deliver a higher quantity of air mass. The delivered air mass does not reach the engine completely, so there is a loss of power. We therefore recommend our billet intake manifold in combination with an upgrade turbocharger. Length and volume are based on the "Audi Motorsport" intake manifold. All screw connections and sensor mounts are in the same position as the original. This means that no cable extensions or other adjustments are necessary. The original carbon or plastic inlay can be retained. MPI nozzle holder On request, our runners are each equipped with an MPI nozzle holder. This allows low-pressure injection nozzles to be fitted, as is already the case with the DAZA and DNWA engines as standard. A suitable injection bar is also available for an extra charge of €349.00. However, you are also welcome to use the standard rail from the DAZA. Milled from the solid Our intake manifold consists of three parts: Intake funnel, plenum and the corresponding upper part. All three parts are milled from solid material and are bolted together. The trochoidal milling process (TPC) ensures fantastic dimensional stability of the intake manifolds. Plug & Play installation All mounts for sensors and peripherals are identical to the original intake manifold. This means that no major adjustments are necessary. Features: - Designed for even filling - The plenum contains no split intake manifold technology - O-ring seal on all flanges, no liquid gasket or paper gasket necessary - No weld seams no structural changes - all milled parts - No cable extension necessary for charge air and boost pressure sensor - Plug & Play fit 100% - Folding without swirl (software adjustment necessary) - Solid walls, designed for extreme pressures - Also available in black anodized on request - Available for all 2.5l 5-cylinder - 100% Made in Germany

Съвместимост:

RS3 8P 8V TTRS 8J 8S RSQ3 8U F3

Мотори:

CEPA / CEPB / CZGA / CZGB / DAZA / DNWA
