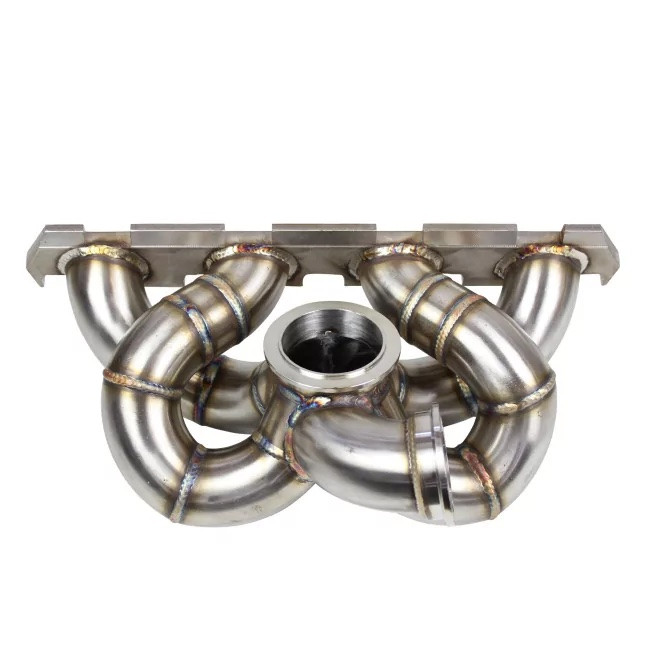

2.0 TFSI EA113 - V-band turbo manifold stainless steel 3 mm - Garrett Pulsar G25 G30 G35 - Tial MVR44 Boost Parts BP-20-1029 - сервиз

Парт номер:

BP-20-1029

Производител:

Информация:

Suitable for 2.0 TFSI EA113 engines V-band flange - suitable for Garrett & Pulsar G25/G30/G35 Connection for external wastegate - Tial MVR44 (44 mm) 3 mm wall thickness - robust stainless steel, heat-resistant up to 1100 °C Flow-optimized - ideal for big turbo conversions Plug-and-play with precise CNC flange manufacturing

Допълнителна информация:

Compatibility with Garrett & Pulsar G-series V-band flange compatible with Garrett G25 / G30 / G35 Also suitable for Pulsar G25 / G30 / G35 V-band turbochargers Optimum positioning & flow for fast spool times Technical features Material: High-temperature stainless steel, corrosion-resistant Wall thickness: 3 mm - very stable and durable Temperature resistance: up to 1100 °C Pipe routing: even & flow-optimized - less back pressure Flanges: CNC-milled - perfect fit & tightness External wastegate connection for Tial MVR44 44 mm connection flange - ideal for boost control under high load Precise boost pressure control even with big-turbo setups Increased stability & thermal relief Use & advantages Developed for 2.0 TFSI EA113 conversions with Garrett or Pulsar turbos Reduced supercharger lag due to optimized tube lengths Gas-tight V-band connection - quick disassembly during maintenance Extremely resilient - ideal for track tools, 600+ hp conversions & more Scope of delivery 1× V-band turbo manifold for 2.0 TFSI EA113 1× V-band flange suitable for Garrett/Pulsar G25-G35 1× Wastegate connection for Tial MVR44 Notes on installation Only intended for external wastegate use Installation by a specialist workshop with motorsport experience recommended Exhaust system & supercharger position to be adjusted individually if necessary
